| Manufacturer Model |
BCD-630W |
| Hisense Model |
H760FSB-WD |
| 1. Product identification |
|
| Category of household refrigerating appliance model (1) Refrigerator with one or more fresh-food storage compartments. (2) Refrigerator-cellar, Cellar and Wine storage appliance. (3) Refrigerator-chiller and Refrigerator with a 0-star compartment. (4) Refrigerator with a one-star compartment. (5) Refrigerator with a two-star compartment. (6) Refrigerator with a three-star compartment. (7) Refrigeraor-freezer. (8) Upright freezer. (9) Chest freezer. (10) Multi-use and other refrigerating appliances. |
|
7 |
| Description of appliance (Sigle Door,BM,TM,Triple Door,SBS, etc) |
|

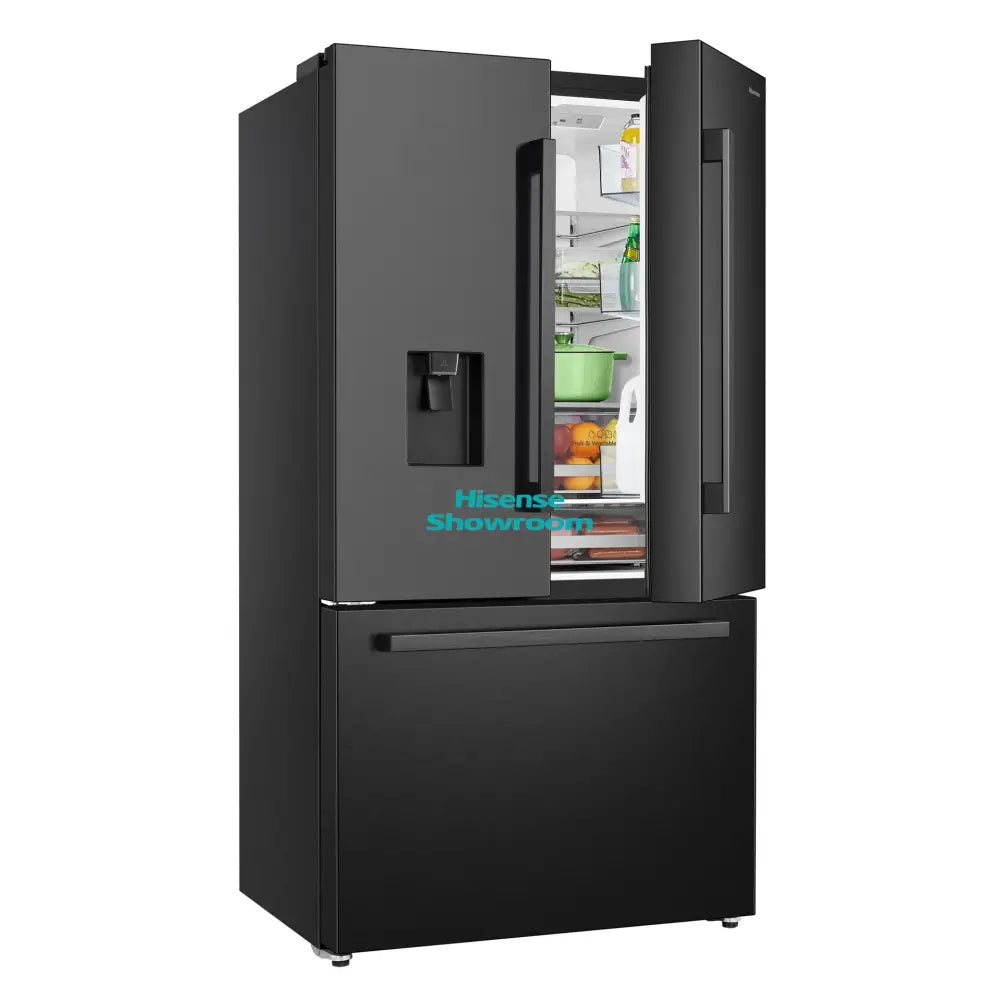

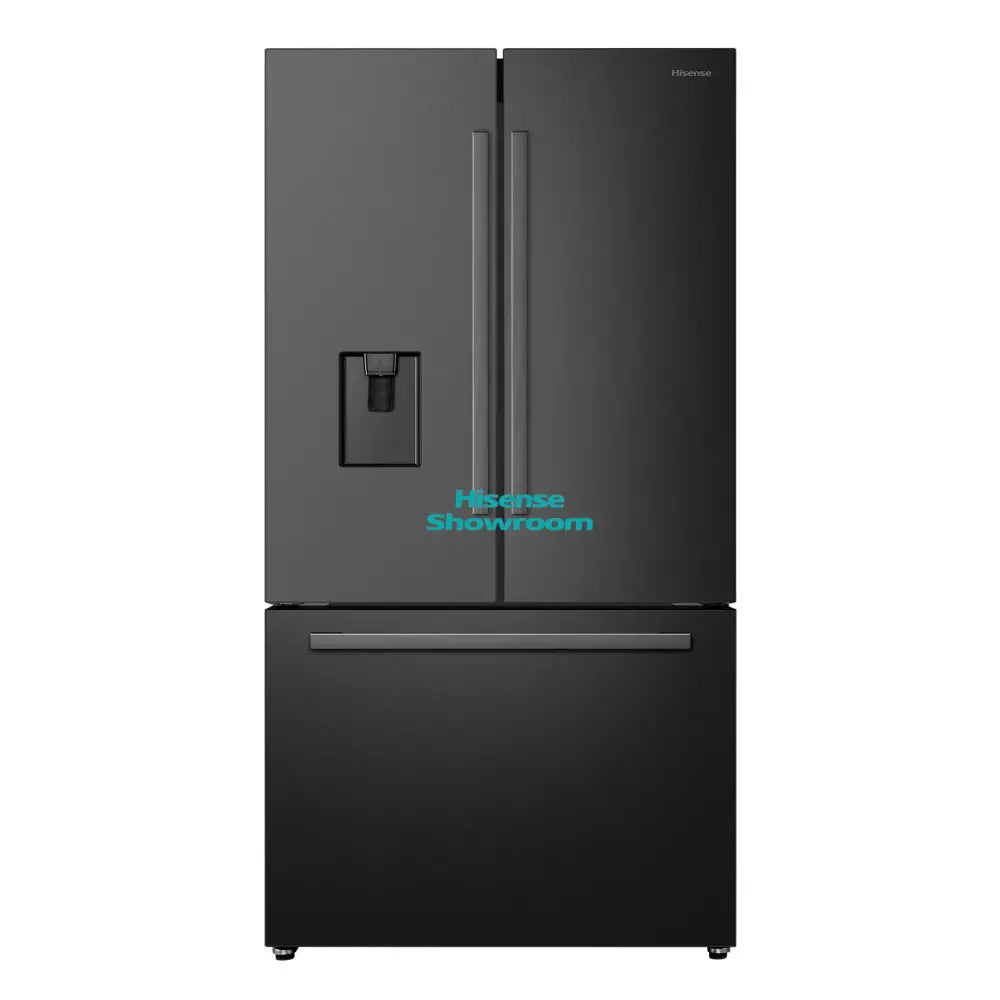

Triple Door |
| Type/appliance (Refrigerator, Larder, Freezer,Wine cooler,Beverage cooler) |
|
R |
| FS (free standing) - BI (built-in) - BU (built-under) |
|
FS |
| 2. Aesthetics |
|
| Door profile ( F = flat / R = rounded / etc...) |
|
F |
| Handle (External/Integrated) |
|
External |
| Colours (White/Silver/SS/Glass/Inox looking) |
|
Black |
| 3. Basic features |
|
| Voltage / frequency |
|
220~240 / 50Hz |
| Climate class (SN=10~32°C, N=16~32°C, ST=16~38°C, T=16~43°C) |
|
SN/N/ST/T |
| Foaming components |
|
C-P |
| Certifications |
|
CE/CB/GCC |
| Net capacity |
l |
575 |
| Net capacity fridge compartment (Fridge/Chill) |
l |
435 |
| Net capacity freezer compartment |
l |
140 |
| Energy efficiency class |
|
A+ |
| Freezer compartment star rating |
|
4 Star |
| Energy consumption / year |
kWh/year |
420 |
| Energy consumption (EN153) per 24 h (A/A+) |
kWh/24 h |
1,15 |
| Freezing capacity / 24 hours |
kg/24 h |
9 |
| Max noise level |
dB(A) |
43 |
| Max storage time by power failure Freezer |
h |
18 |
| Kind of coolant / Charge (R134a/R600a) / grammes |
R / g |
R600a/57 |
| 4. Key features |
|
| Defrosting Fridge / Freezer (M=manual A=automatic) |
|
A |
| Control system (E = Electronic / M = Mechanical) |
|
E |
| Frost Free (Fridge/Freezer) |
|
Yes |

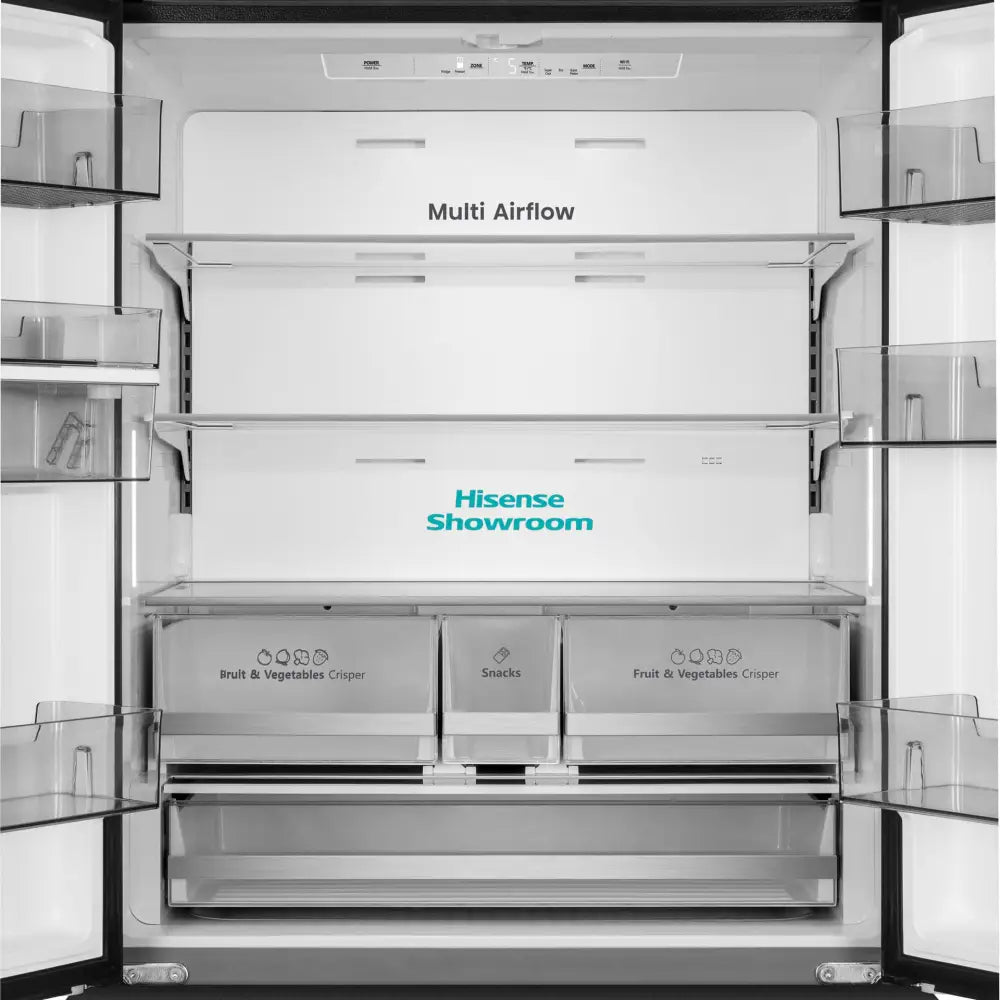

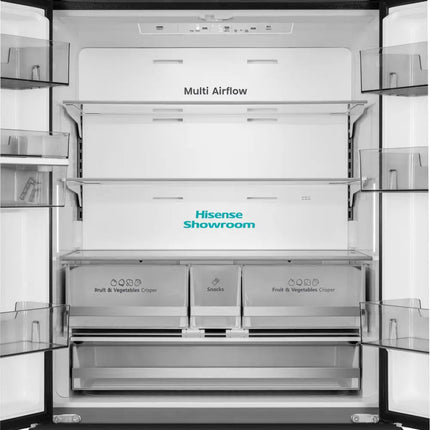

| Multi airflow (Fridge/Freezer) |
|
Yes |
| Reversible door |
|
No |
| Huge box |
|
Yes |
| Easy cleaning door seal |
|
Yes |
| Crisper with humidity control function |
|
No |
| Adjustable spill-proof shelves |
|
Yes |
| Tempered glass |
|
Yes |
| LED Light (Fridge/Freezer) |
|
Yes/Yes |

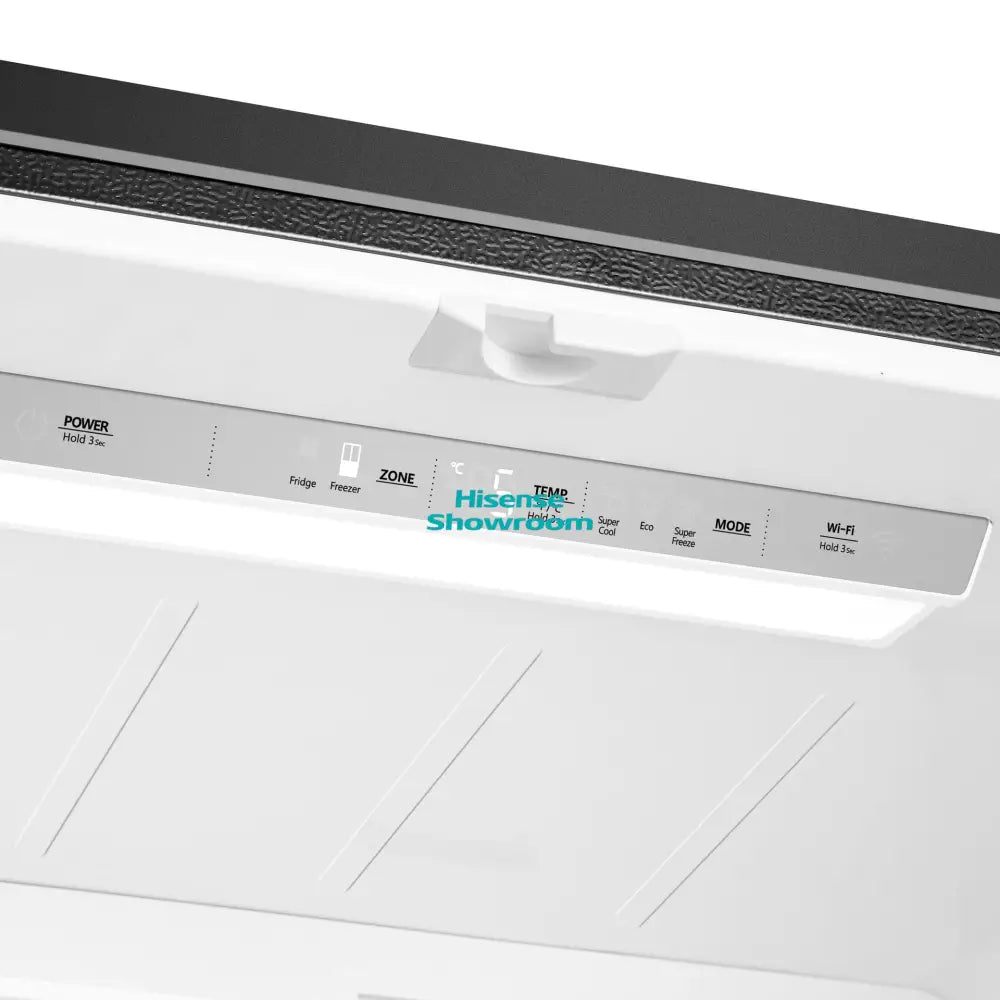

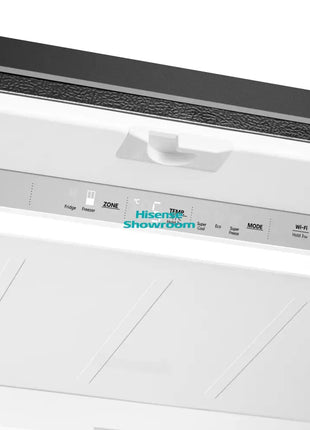

| 5. Control panel |
|
| control display |
|
Yes |
| control display with LED/LCD |
|
LED |
| Temperature range (from>to) |
℃ |
2℃≤tma≤8℃；
-14≤tf≤-24℃； |
| Super Cooling (Fridge) |
|
YES |
| Super Freezing (Freezer) |
|
YES |
| Open door alarm (Led Display/ Acoustic) |
|
Led Display/ Acoustic |
| Adjustable thermostat (Y=Yes / N=No) |
|
Yes |
| Holiday |
|
No |
| Eco |
|
Yes |
| Power on/off |
|
Yes |

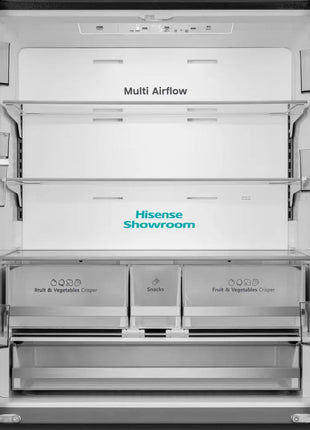

| 6. Fridge compartment |
|
| Shelves: |
|
|
| Number/type |
|
2/glass |
| Colour (w=white / lb=light blue / g=green / t=transparent. / tk=teak) |
|
t |
| Crisper(s) : |
|
|
| Shelf (on crisper) |
|
2 |
| My fresh choice (call chill compartment too):number/color |
|
1 Full-width fresh drawer in Fridge compartment /transparent |
| cool fresh room |
|
No |
| vegatable compartment：number/color |
|
2 half-width drawers+1 snack box /transparent |
| Door: |
|
|
| Storage rack(s) (Total) |
|
3+3 |
| Water tank/L |
|
1 |
| Covered dairy compartment |
|
No |
| bottle holder |
|
No |
| Protection Rod(s) |
|
No |
| Eggs tray(s) / Total number of eggs |
|
No |
| Interior light |
W |
LED（9W） |
| Wine rack nr. / type |
|
No |

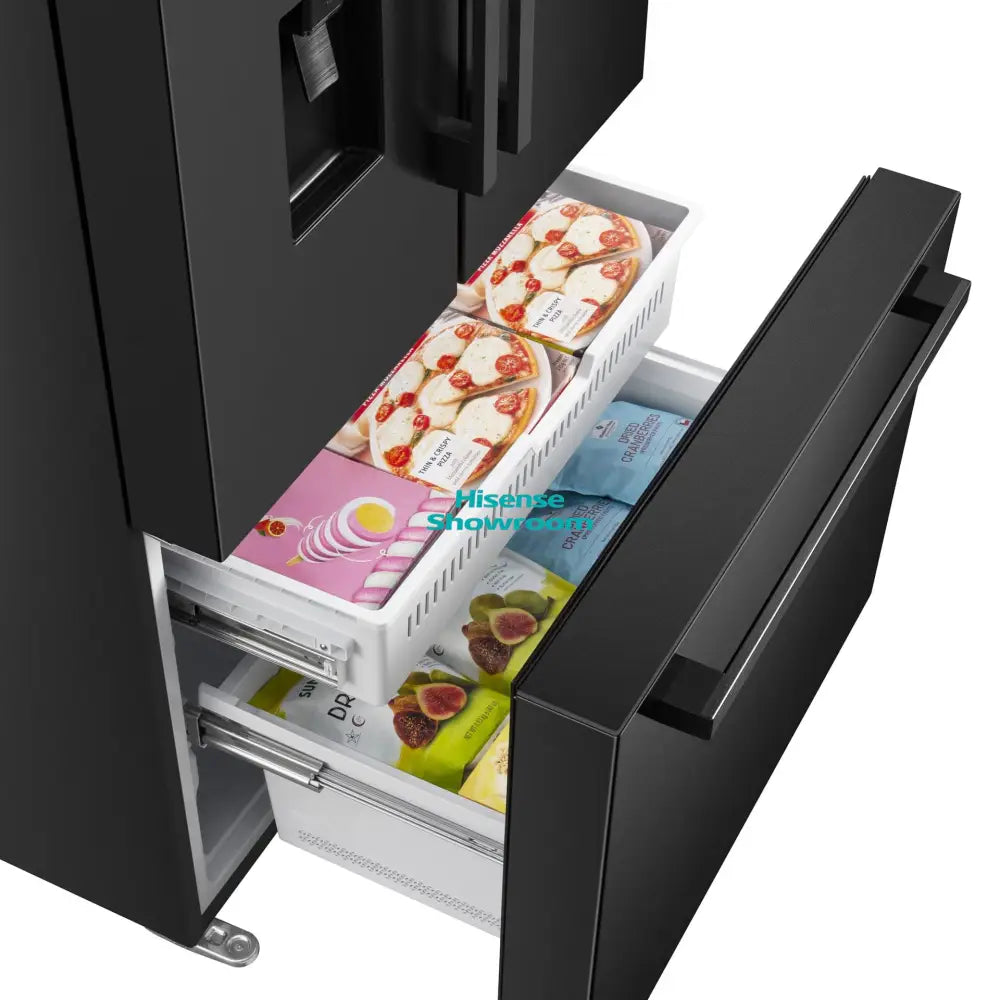

| 7. Freezer compartment |
|
| Drawer(s) |
|
2 |
| Shelves: Number/type |
|
No |
| Easy access trays: Number/type |
|
1 |
| Storage rack(s) on the door (Total) |
|
No |
| Colour of drawer (w=white, t=transp., g=green, gr=gray) |
|
W |
| Ice cube tray(s) |
|
No |
| Interior light |
W |
LED（1W) |
| 8. Others |
|
| Defrost water outlet |
|
YES |
| Adjustable feet (front / rear) |
|
2 / 0 |
| Castors (front / rear) |
|
2/2 |
| Wall spacer grid or distance holder |
|
1 |
| Lenght of cable/incl. plug |
cm |
200 |
| 9. Packing dimensions & loadability |
|
| Unit dimensions with Integrated handle or without handle ( W / D / H ) |
mm |
914×725×1785 |
| Unit dimensions with external handle ( W / D / H ) |
mm |
914×776×1785 |
| Packing dimensions (W / D / H) |
mm |
968×778×1891 |
| Depth with open door |
mm |
1082 |
| Net weight |
kg |
115 |
| Gross weight |
kg |
125 |
| 20GP/40GP/40HC Container load |
pcs |
48 |
| 10. Logistic / recycling information |
|
| Packing weight |
kg |
10 |
| Packing materials / Recycling symbols (RS) |
RS |
YES |
| Cardboard |
g |
6800 |
| Polystyrene (EPS/EPE) |
g |
2241 |
| Polypropylene （PP) |
g |
320 |
| Polyethylene (PE) |
g |
168 |
| Metal (04) |
g |
11,90 |
| Wood |
kg |
/ |
| 11.Sale Features |
|
| feature |
A+ Energy Rating |
| Flat Door Design |
| Digital display |
| Top LED Lighting |
| Metal slide freezer drawer |

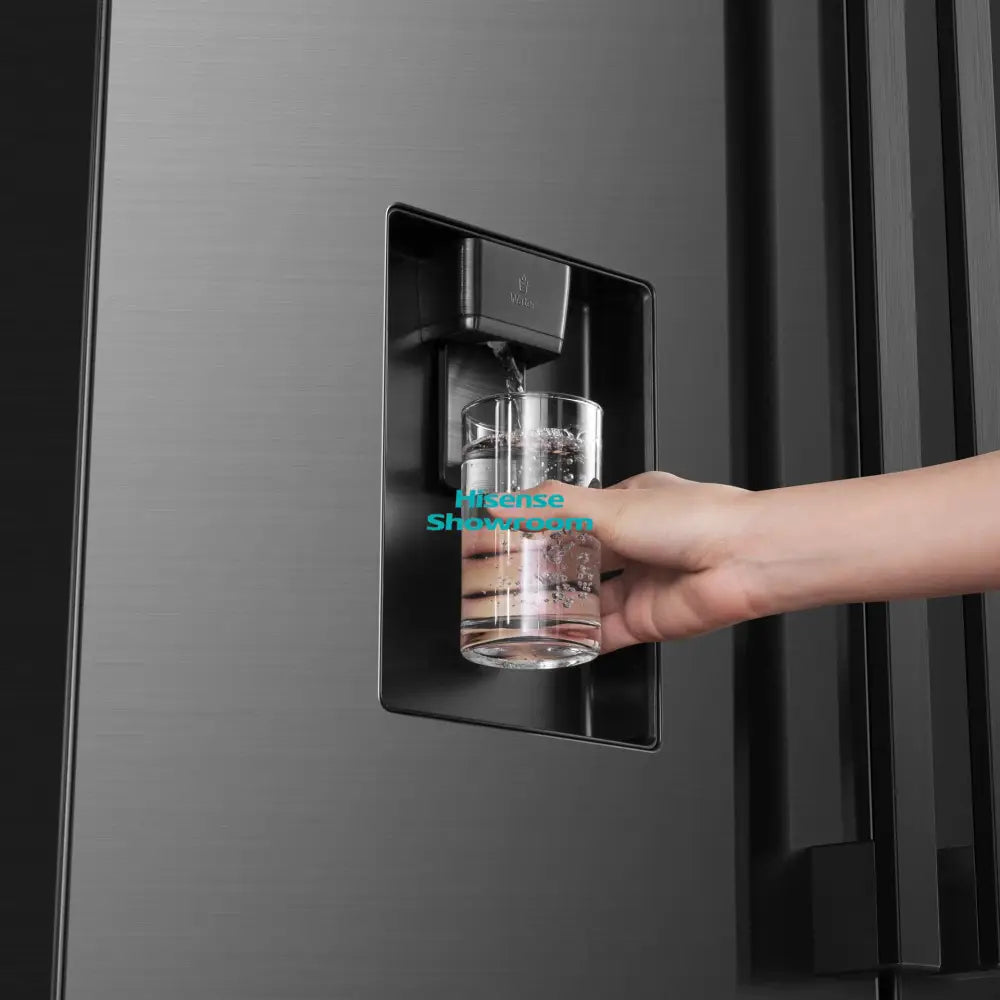

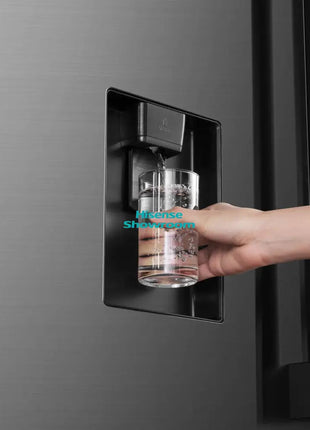

Water Dispenser
