| Product Specification |
20212/4/25 |
| Manufacturer Model |
BCD-628W |
| Hisense Model |

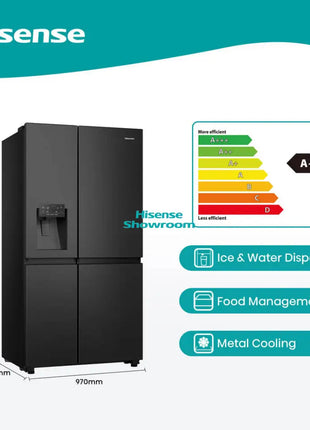

H780SB-IDL |
| 1. Product identification |
| Description of appliance (Sigle Door, BM, TM, Triple Door, SBS, etc) |
|
SBS |
| Type/appliance (Refrigerator, Larder, Freezer, Wine cooler, Beverage cooler) |
|
R |
| FS (free standing) - BI (built-in) - BU (built-under) |
|
FS |
| 2. Aesthetics |
| Door profile ( F = flat / R = rounded / etc...) |
|
F |

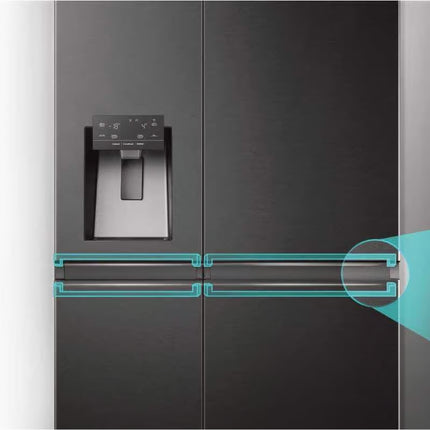

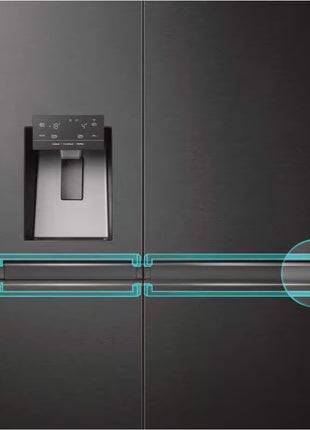

| Handle (External/Integrated) |
|
Integrated |
| Colours (White/Silver/SS/Glass/Inox looking/Sand color) |
|
Black Stainless Steel |
| 3. Basic features |
| Voltage / frequency |
|
220~240 / 50Hz |
| Climate class (SN=10~32°C, N=16~32°C, ST=16~38°C, T=16~43°C) |
|
SN,N,ST,T |
| Foaming components |
|
C-P |
| Certifications |
|
CB;ERP |
| Net capacity |
l |
601 |
| Net capacity |
l |
415 |
| Net capacity freezer compartment |
l |
186 |
| Energy efficiency class |
|
A+ |
| Freezer compartment star rating |
|
4 |
| Energy consumption / year |
kWh/year |
447 |
| Energy consumption (EN153) per 24 h (A/A+) |
kWh/24 h |
1,226 |
| Rated Input power |
W |
300 |
| Defrost power |
W |
252 |
| Freezing capacity / 24 hours |
kg/24 h |
13 |
| Max storage time by power failure Freezer |
h |
|
| Max noise level |
dB(A) |
41 |
| Kind of coolant / Charge (R134a/R600a) / grammes |
R / g |
R600a/72g |
| 4. Key features |
| Defrosting Fridge / Freezer (M=manual A=automatic) |
|
A/A |
| Control system (E = Electronic / M = Mechanical) |
|
E |
| Frost Free (Fridge/Freezer) |
|
Yes |
| Multi airflow (Fridge/Freezer) |
|
Yes/Yes |
| Reversible door |
|
No |
| Huge box |
|
Yes |
| Easy cleaning door seal |
|
Yes |
| Crisper with humidity control function |
|
Yes |
| Adjustable spill-proof shelves |
|
No |
| Tempered glass |
|
Yes |
| LED Light (Fridge/Freezer) |
|
Yes/Yes |
| 5. Control panel |
| External control display |
|
Yes |
| External control display with LED/LCD |
|
LED |
| Temperature range (from>to) |
°C |
Fridge:0℃≤tma≤4℃；
Freezer: tf≤-18℃； |
| Super Cooling (Fridge) |
|
Yes |
| Super Freezing (Freezer) |
|
Yes |
| Over temperature alarm (Red lamp / LCD-LED / Acoustic) |
|
No |
| Adjustable thermostat (Y=Yes / N=No) |
|
Yes |
| WIFI+ APP+ Intelligent voice |
|
Yes |

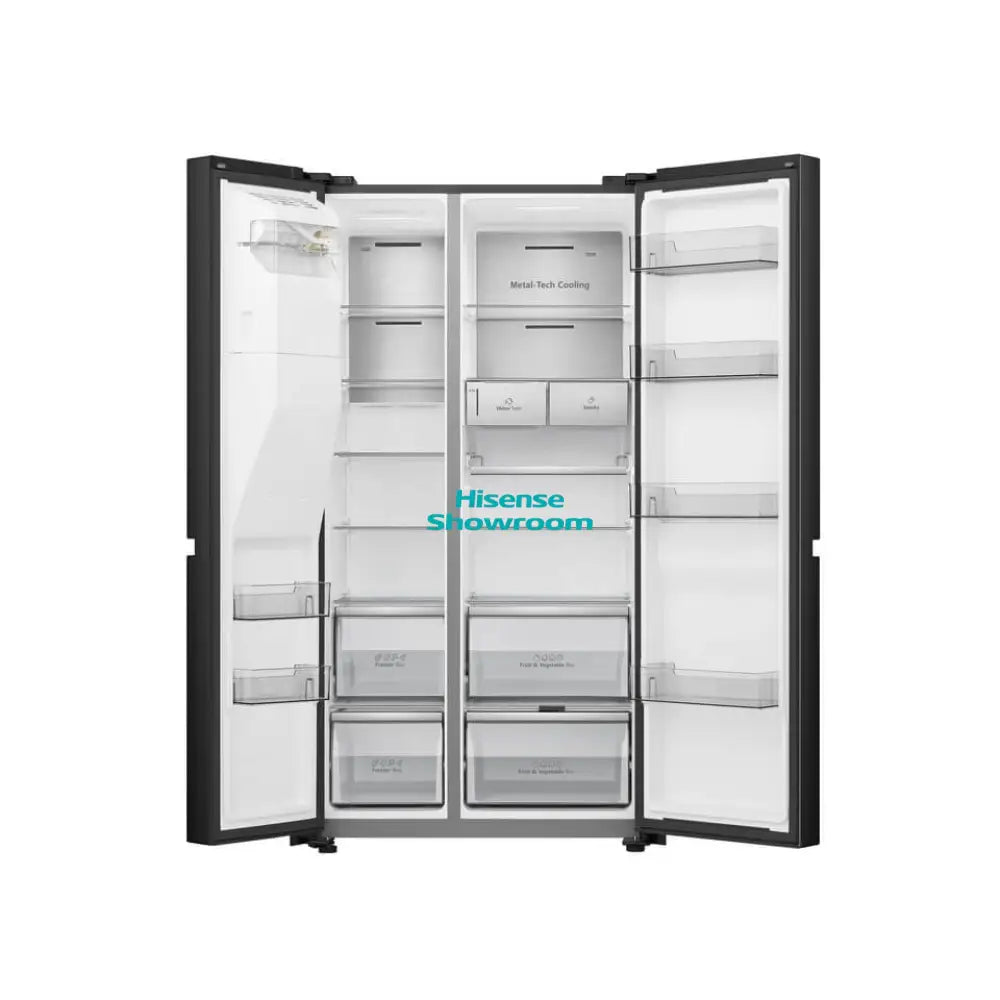

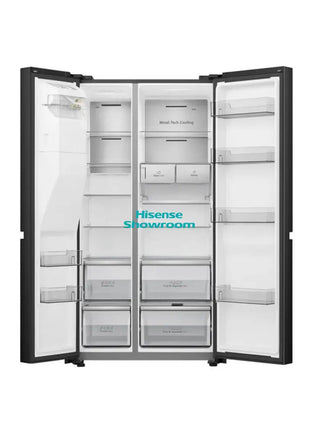

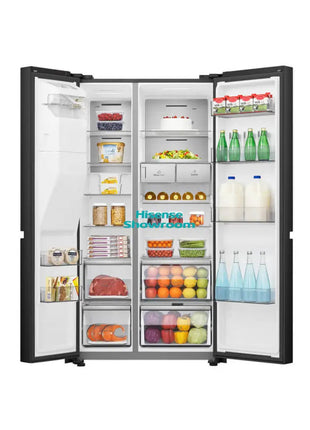

| 6. Fridge compartment |
| Shelves: |
|
|
| Number/type |
|
3 |
| Colour (w=white / lb=light blue / g=green / t=transpar. / tk=teak) |
|
t |
| Crisper(s) : |
|
| Shelf (on crisper) |
|
2 |
| My fresh choice (call chill compartment too):number/color |
|
0 |

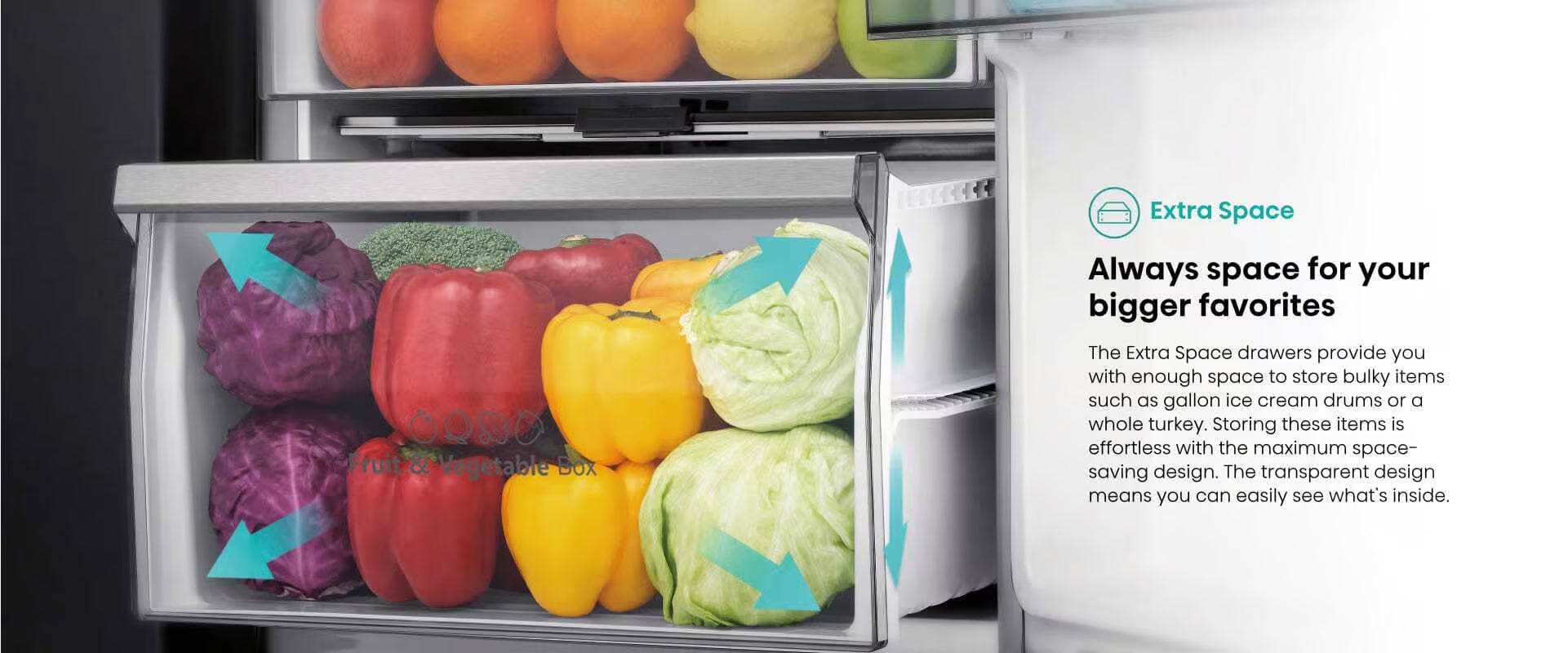

| vegatable compartment：number/color |
|
2 /transparent |

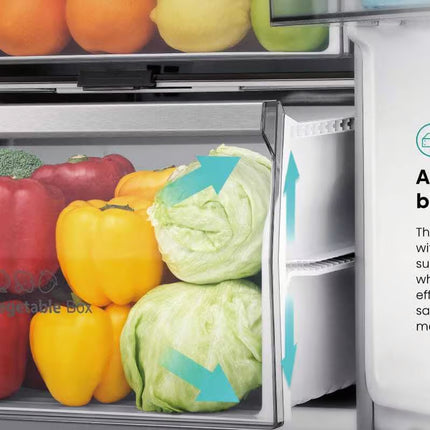

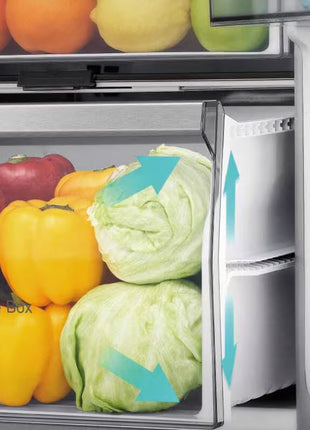

| bottom vegetable compartment with moisture adjustable |
|
Yes |
| Door: |
|
|

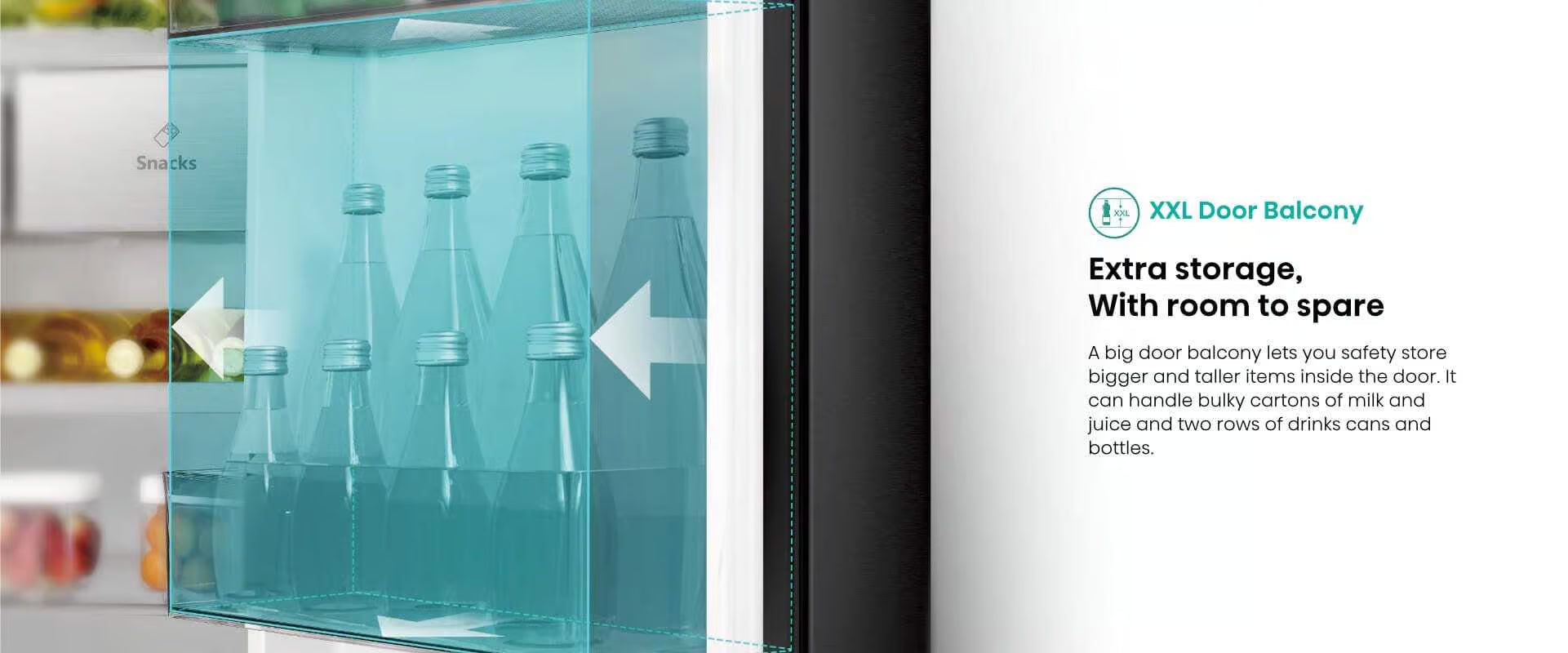

| Storage rack(s) (Total) |
|
4/transparent |
| Covered dairy compartment |
|
- |
| bottle holder |
|
- |
| Protection Rod(s) |
|
0 |
| Eggs tray(s) / Total number of eggs |
|
2 |
| Function parts |
|
|
| Metal cooling |
|
Yes |
| Flexi-fresh box |
|
Yes（half width box） |

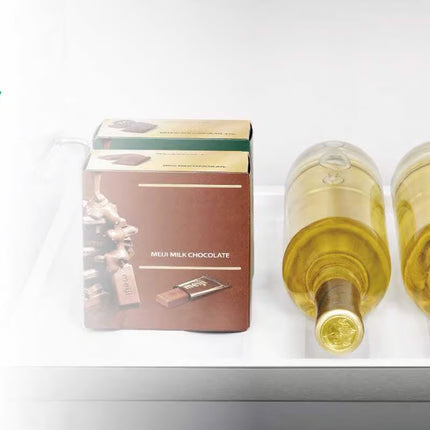

| Wine rack nr. / type |
|
Yes/ Multi function design |
| Interior light |
W |
LED，3+3（top+side） |
| 7. Freezer compartment |
| Drawer(s) |
|
2 /transparent |
| Shelves: Number/type |
|
4 |
| Flap(s) |
|
No |
| Storage rack(s) on the door (Total) |
|
2 |
| Colour of drawer (w=white, t=transp., g=green, gr=gray) |
|
t |
| Ice cube tray(s) |
|

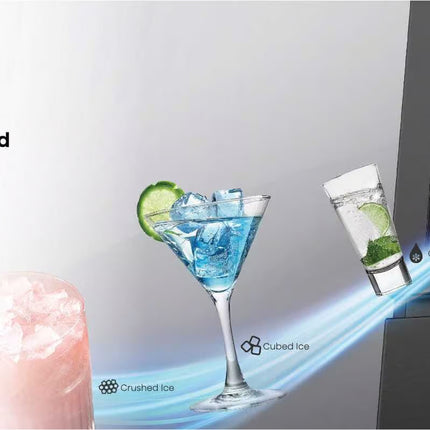

Automatic-Ice & Water Dispenser |
| Interior light |
W |
LED，3W(top)+1W（ice maker） |
| Metal cooling |
|
Yes |
| 8. Others |
| Defrost water outlet |
|
Y |
| Adjustable feet (front / rear) |
|
2/0 |
| Castors (front / rear) |
|
1/2 |
| Wall spacer grid or distance holder |
|
No |
| Lenght of cable/incl. plug |
cm |
200 |
| 9. Packing dimensions & loadability |

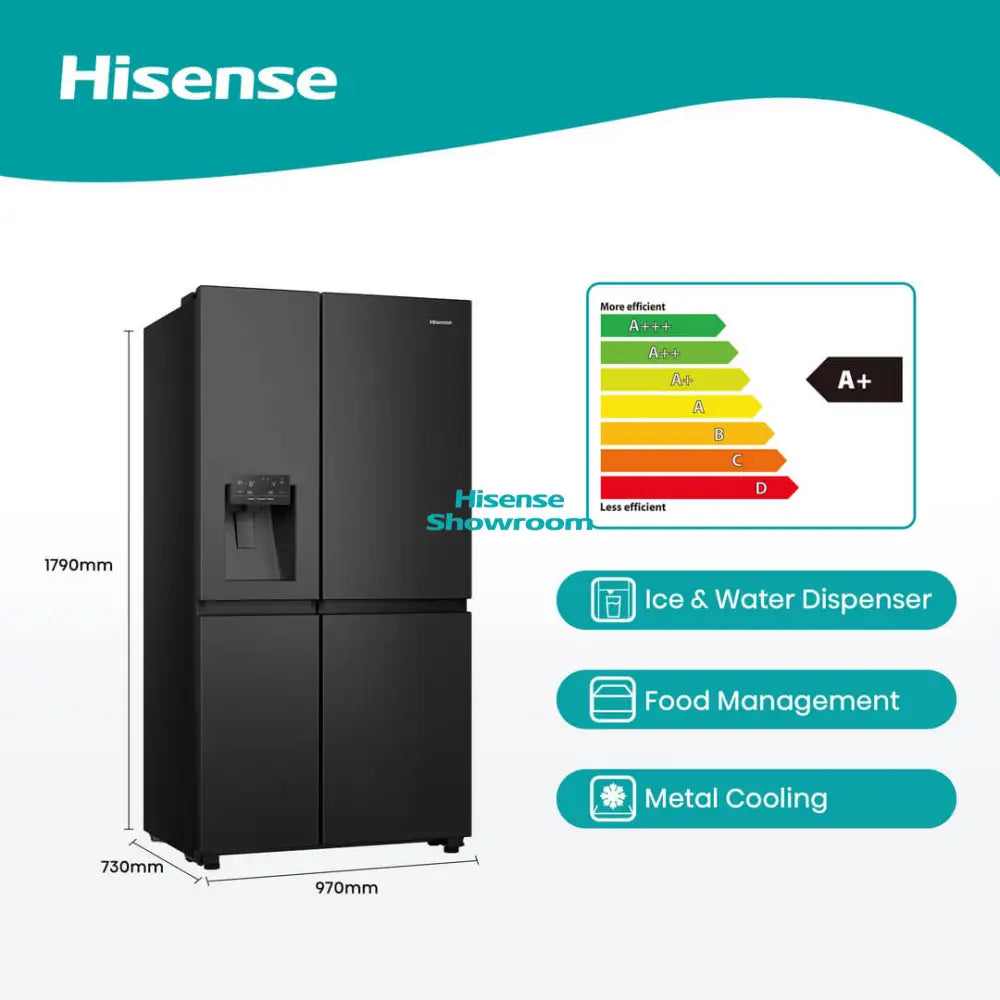

| Unit dimensions with Integrated handle or without handle ( W / D / H ) |
mm |
910×730×1790 |
| Unit dimensions with external handle ( W / D / H ) |
mm |
/ |
| Packing dimensions (W / D / H) |
mm |
978x787x1860 |
| Depth with open door |
mm |
1055 |
| Net weight |
kg |
107 |
| Gross weight |
kg |
117 |
| 20GP/40GP/40HC Container load |
pcs |
-/-/48 |
| 10. Logistic / recycling information |
| Packing weight |
kg |
10 |
| Packing materials / Recycling symbols (RS) |
RS |
YES |
| Cardboard |
gr |
6.5Kg |
| Polystyrene (EPS/EPE) |
gr |
2.2Kg |
| Polypropylene （PP) |
gr |
1Kg |
| Polyethylene (PE) |
gr |
250g |
| Metal (04) |
gr |
30g |
| Wood |
kg |
无 |
| 11.Sale Features |
| Sale Features |
A+ Energy Rating |
| Big capacity |

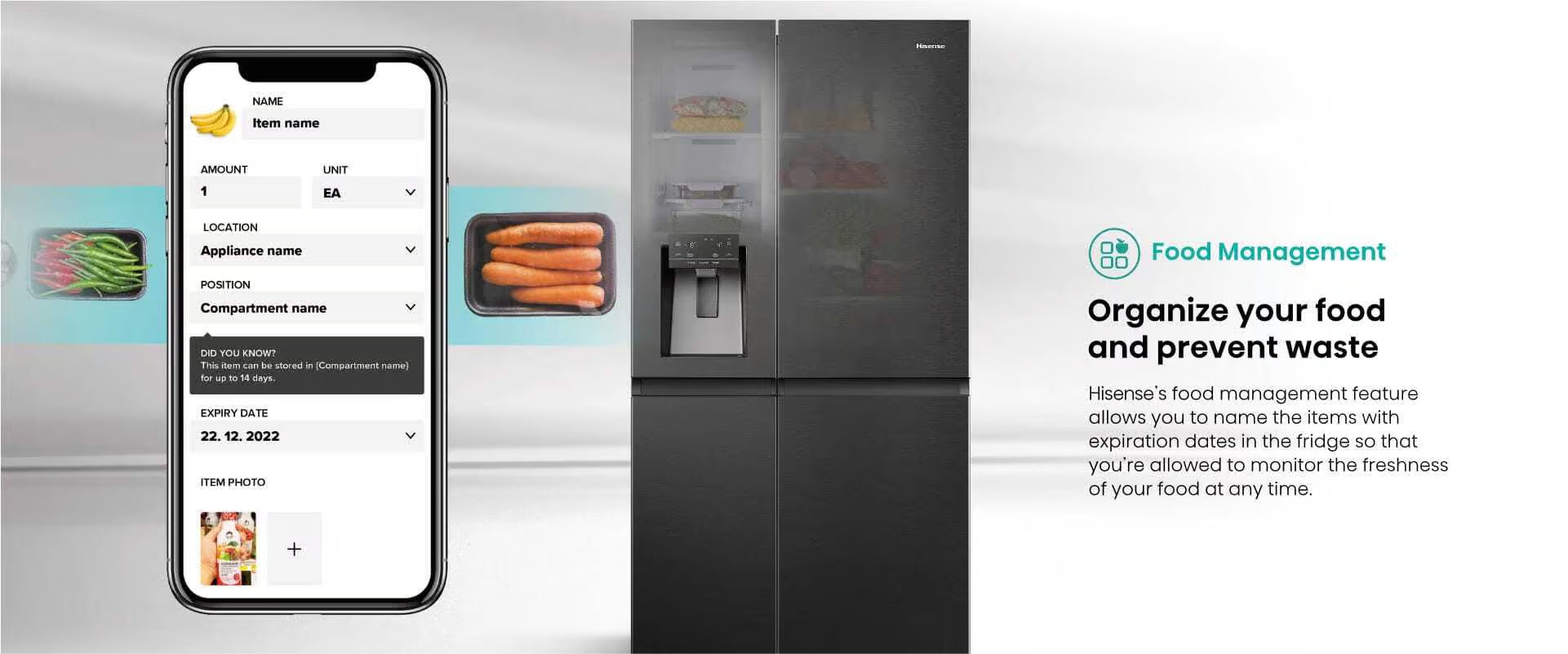

| WIFI +APP |
| Metal cooling |

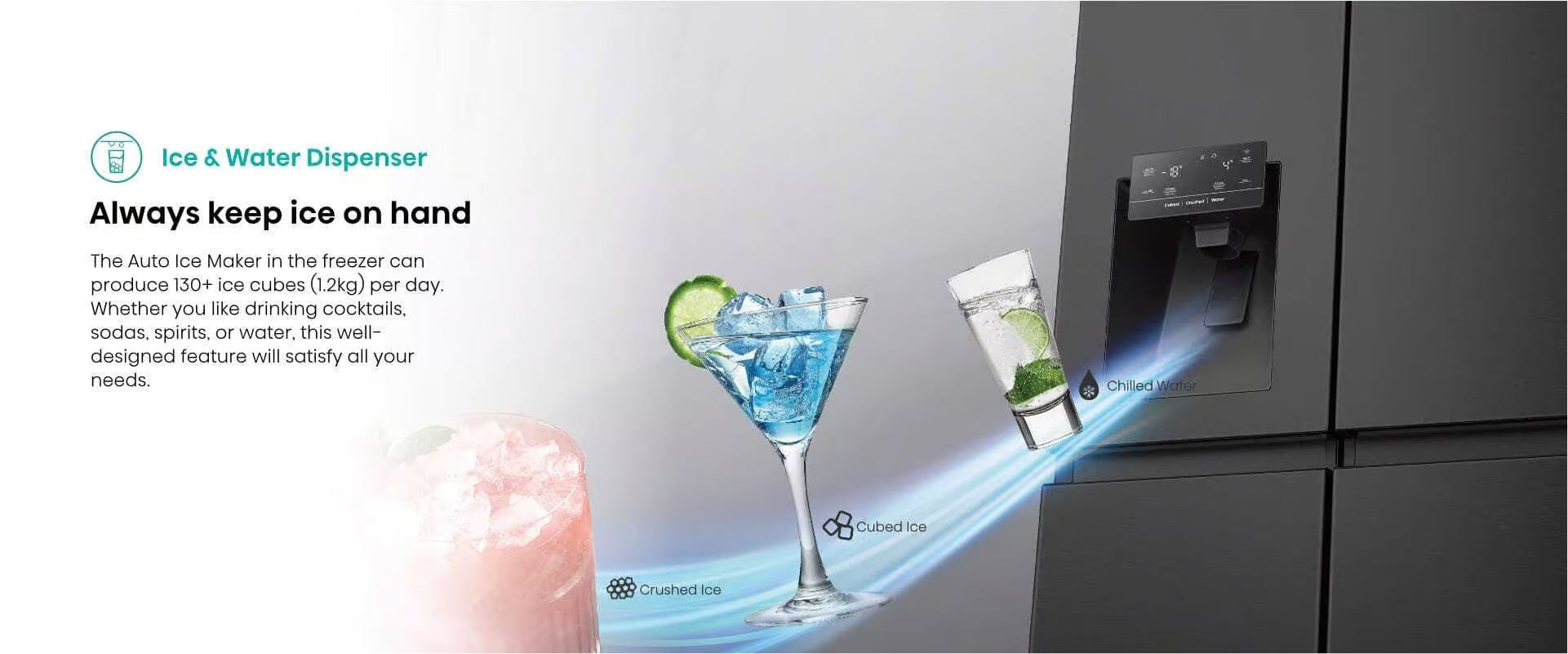

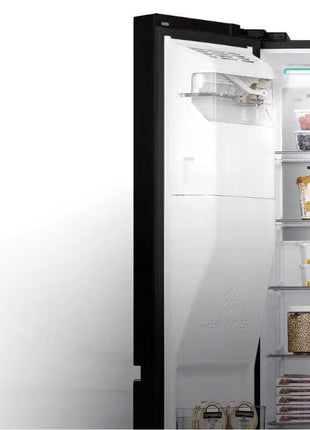

| Non-plumbed Ice and water dispenser with 4.5L water tank |
| Total No Frost |
| Multi air flow system |
| Super Freeze, Super cool,Eco Mode |
| Inverter compressor and low noise |

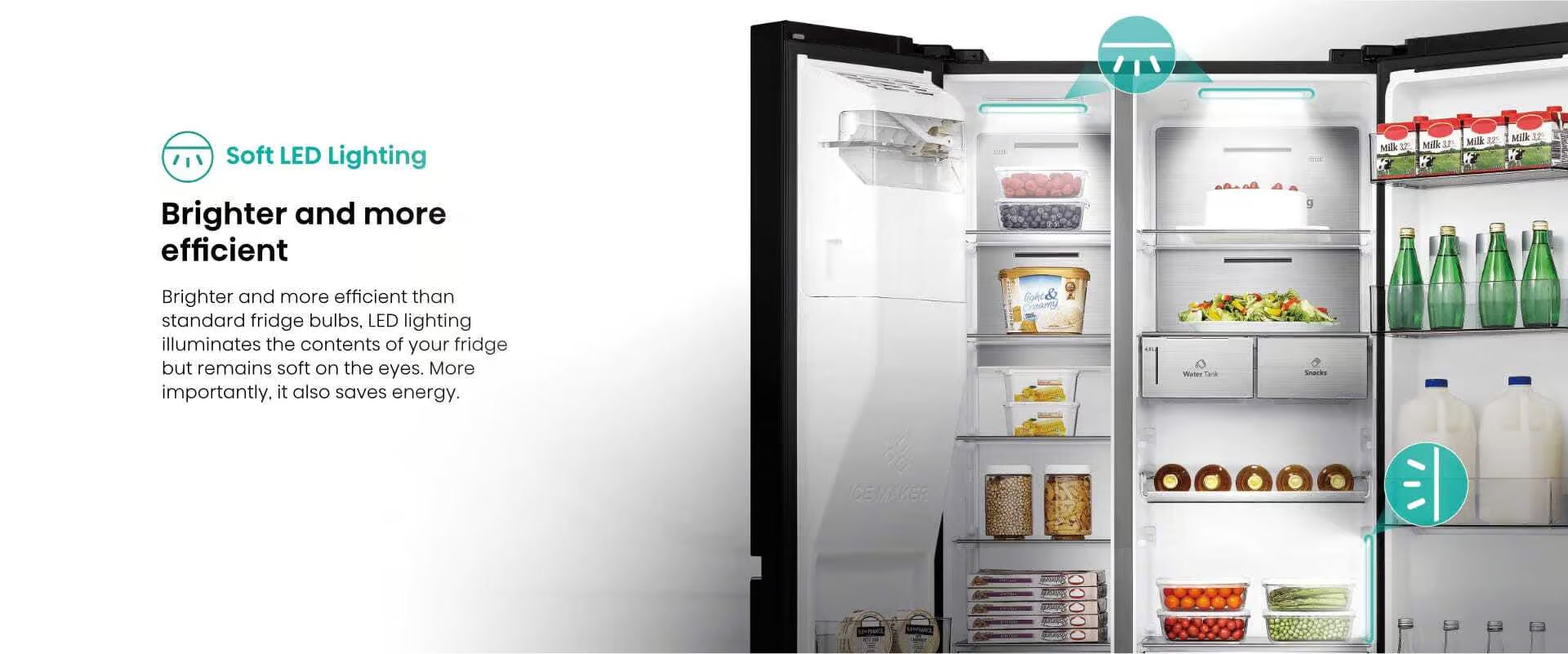

| LED Lighting |
| Digital Sensors |
| Touch electronic control |

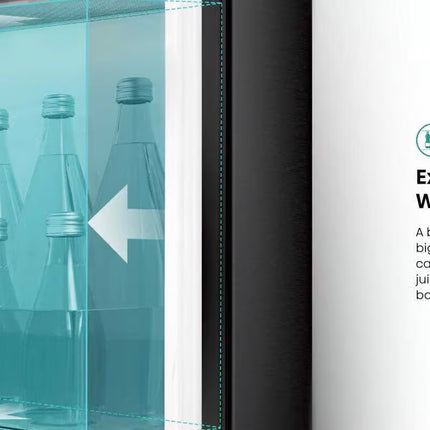

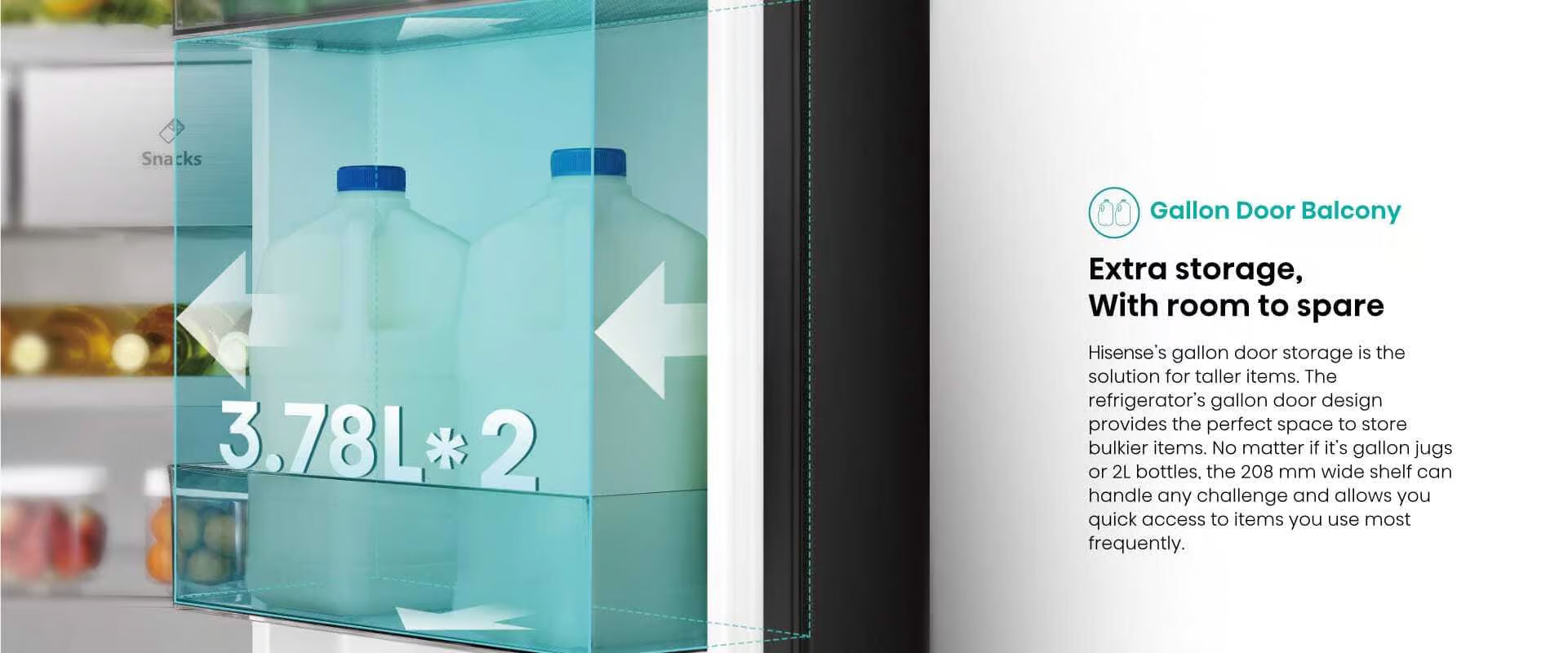

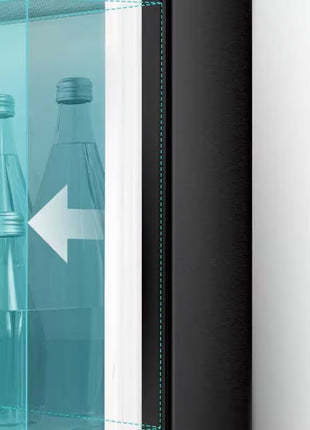

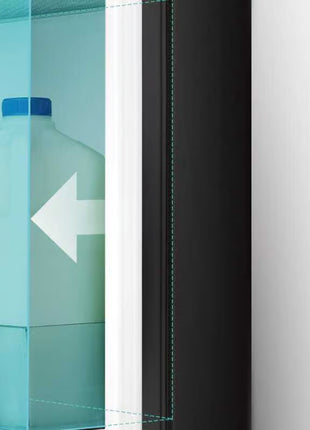

| Bigger Racks,160mm depth for 2L beverage bottle |
| Muti-function Wine Rack |
